Home HVAC Ventilation Heat Exchanger DirectAir heat recovery ventilator 105CFM [PHRVR104]

DirectAir heat recovery ventilator 105CFM [PHRVR104]

PART 463319
TBD
QUANTITY

About this item

DirectAir heat recovery ventilator 105CFM PHRVR104

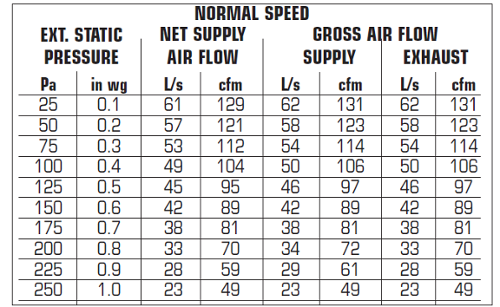

130 CFM (non-ducted)

PHRVR104 ES is a compact HRV specially designed for small residential and multi-residential applications such as condominiums and apartment buildings that require up to 100 CFM of continuous principal ventilation. With its flexible and compact top port design incorporating the 5" oval collars with integrated airflow measurement and wall bracket, it can be installed in small spaces such as 24" closets or above the hot water heater.
The PHRVR104 ES is also equipped with the Manually activated extra hight speed function to temporarily increase its exhaust capacity when needed; for example, when bathrooms or kitchens are exhausted with the use of an HRV instead of conventional methods.

FEATURES

•Maually activated extra high speed function boosts exhaust capacity by up to 50%
•5" (125mm) oval duct connections with integrated airflow measurement
•Removable screw terminal for easy connection
•Lightweight: only 39 lbs (17.7 kg) including core

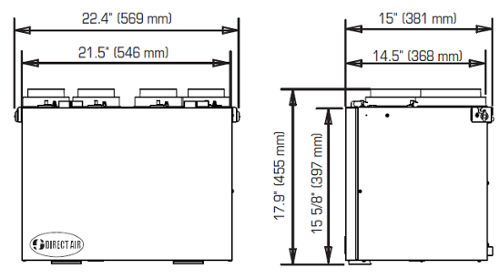

•Super compact size
•Top port design fits in tight spaces
•Includes wall bracket
•Aluminum heat recovery core
•Multiple speed operation
•Internal recirculation defrost

MOTORS: Two (2) German-manufactured, factory-balanced EBM motors with backward curved blades. Motors come with permanently lubricated, sealed ball-bearings to guarantee long life and maintenance-free operation. Covered by a seven (7) year warranty.

HEAT RECOVERY CORE: Aluminum heat recovery core covered by a limited lifetime warranty. Core dimensions are 8.5" x 8.5" (216 x 216 mm) with a 12" (305 mm) depth. Our heat exchangers are designed and manufactured to withstand extreme temperature variations.

FROST PREVENTION SYSTEM: The PHRVR104 ES incorporates a unique and quiet internal recirculation defrost that does not depressurize the home during the defrost cycle. A preset defrost sequence is activated when the outdoor temperature falls below 23° F (-5° C) and automatically adjusts itself based on operating conditions. The fan speed is also adjusted automatically to provide a smooth and quiet transition between Ventilation & Defrost mode.

SERVICEABILITY: All serviceable internal components, including core, filters, motors and electronic board are easily accessible and can be fully removed in under 5 minutes for complete service. A 12" (305 mm) clearance from the front of the unit is recommended to fully remove the core and other internal components.

DUCT CONNECTIONS: 5" (125mm) Oval plastic duct connections with integrated balancing damper and airflow measurement ports.

CASE: 24 gauge galvanized steel. Baked power-coated paint for a superior adhesion and resistance.

INSULATION: Cabinet is fully insulated with 1" (25 mm) high density expanded polystyrene.

FILTERS: Two (2) washable electrostatic panel type air filters, 8.5" (216mm) x 12.5" (318 mm) x 0.125" (3mm).

DRAIN: 1/2" (13mm) OD (outside diameter) drain spout provided, entire bottom of unit covered by drain pan.

WARRANTY: Limited lifetime on aluminum core, 7 year on motors, and 5 year on parts.



Make & Model
Brand ---
Part # ---
Specifications
Color Family White
Certifications & Standards
TAA/BAA Compliant 1
Packaging Dimensions
Height 7.800
