Home ELECTRICAL Heating Baseboards Stelpro small white patio heater 750W 240V

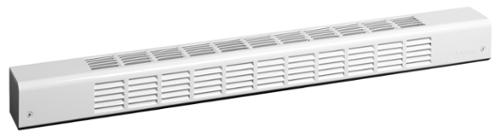

Stelpro small white patio heater 750W 240V

PART SPDH15072W
TBD
QUANTITY

About this item

The SPDH mini baseboard series has made a name for itself in the heating sector. It’s designed to be installed under a patio door and is trample resistant. Despite its small size, its rounded front rim makes it surprisingly sturdy.



COLOURS



FINISH

  • Epoxy-polyester powdercoat



MANUFACTURING

  • 3 in. x 3 in. compact profile
  • Solid, 18-gauge steel cabinet and front that may be used as a step
  • Thermal protection with automatic reset
  • Full-length wireway
  • Pencil-proof openings of less than 1/4 in. (6.4 mm) prevent foreign objects from entering the unit



ELEMENT

  • Single tubular, stainless steel sheathed element with boxed aluminum fins for improved heat dissipation; the element is securely fastened at its centre, floating in nylon sleeves at each end, eliminating expansion and contraction noises



CONTROL

  • Wall thermostat (not included) – the use of an electronic thermostat is strongly recommended
  • Built-in thermostat accessible without removing front grille, installed in the left junction box only (optional)
  • Low voltage relay kit installed in the left junction box only (optional)



INSTALLATION

  • Surface mounted
  • Wall or floor mounted with or without pedestal kit (optional)
  • Wiring compartment at both ends of unit
  • Blank sections (custom lengths) and accessories are available for a continuous look (optional)



WARRANTY

  • Three years
Make & Model
Brand ---
Part # ---
Specifications
Color Family White
Certifications & Standards
TAA/BAA Compliant 1
Packaging Dimensions
Height 7.800
